Definition: Master the exact mechanical definition, structural purpose, and operational role of an End Carriage Wheel Block in heavy industrial overhead lifting systems.
Terminology: Clarify technical distinctions and functional overlaps between bridge crane end carriages and crane end trucks.
Mechanics: Analyze power transmission, drive mechanisms, and kinematic principles governing how an End Carriage Wheel Block propels a crane bridge along runway rails.
Components: Examine structural steel profiles, drive motors, gearboxes, wheel assemblies, and buffer systems comprising a complete End Carriage Wheel Block.
Selection Criteria: Evaluate load capacity, span length, wheel load distribution, and duty class parameters when specifying an End Carriage Wheel Block for heavy manufacturing facilities.
As a senior industrial mechanical engineering expert, I frequently evaluate foundational travel assemblies that dictate overhead crane stability. The End Carriage Wheel Block serves as the vital structural and propulsion interface connecting main bridge girders to elevated runway rails. Without a precisely engineered End Carriage Wheel Block, even robust main girders fail to achieve smooth, aligned horizontal translation.
A bridge crane end carriage is a rigid structural box fabricated from high-grade steel plates, housing precision-machined wheel assemblies, gear motors, and buffer mechanisms at each end of the bridge. It functions as the wheeled chassis of the crane. During daily operations, the End Carriage Wheel Block transfers combined vertical loads directly onto runway rails while translating motor torque into linear travel motion.
Specifying the correct End Carriage Wheel Block dictates long-term alignment stability and maintenance frequency. Advanced European modular designs, such as the European End Carriage Wheel Block with 0.65kw Motor, establish new benchmarks in compact torque transmission and structural rigidity by eliminating open-gear drives in favor of direct-coupled helical gearboxes.
Wheel Diameter Specifications: Standard industrial units range from 112mm to over 500mm, with modular choices like the BRS 112mm light modular more efficient European Crane Wheel Block Overhead Crane optimizing weight-to-capacity ratios.
Steel Plate Thickness: Fabricated using Q345B or equivalent high-tensile structural steel plates via CNC laser cutting and robotic welding to prevent torsional distortion.
Motor Power Integration: Coupled with multi-stage gearmotors featuring soft-start capabilities and electromagnetic disc brakes to eliminate mechanical shock during travel acceleration.
Maintenance Tip: Regular laser alignment checks of runway rails and End Carriage Wheel Block assemblies prevent lateral tracking discrepancies that accelerate flange wear and increase energy consumption.
In global industrial engineering, "end carriage" and "end truck" are often used interchangeably, though regional nomenclature distinguishes fabrication styles. As a technical consultant, I clarify that whether designated as an end carriage or an end truck, the underlying mechanical assembly fulfills the identical purpose of supporting the bridge structure and housing travel drives.
North American industry historically denoted bolted structural channel or welded tubing assemblies as end trucks, whereas European markets commonly describe torsionally rigid box-section fabrications integrated with modular wheel blocks as end carriages. Regardless of vocabulary, any properly engineered End Carriage Wheel Block must maintain absolute squareness with main bridge girders to prevent wheel skewing and flange binding.
Modern manufacturing demands high-precision alignment provided by integrated box-section designs. Utilizing a standardized European Crane Wheel Block Overhead Crane within the truck assembly ensures modular interchangeability and rapid maintenance replacement without extensive on-site modifications.
North American End Truck Design: Emphasizes bolted structural steel channels with removable wheel cartridges for convenient field servicing in heavy process mills.
European End Carriage Design: Emphasizes closed rectangular box-section construction welded as an integral torsion box, maximizing lateral stiffness and minimizing deflection.
Modular Wheel Block Integration: Modern designs incorporate self-contained ductile iron or forged steel wheel blocks bolted directly to machined pads on the frame, ensuring perfect perpendicularity.
Working Principle: The primary mechanical function of any end truck or end carriage is resolving vertical gravity loads into horizontal shear forces transmitted smoothly through runway steel structures.
Operational mechanics of a bridge crane end carriage involve converting electrical energy into synchronized mechanical propulsion. When operators engage travel commands, dual or quad gear motors mounted directly to End Carriage Wheel Block assemblies initiate rotation. Rotational torque transmits through helical gear reducers directly to drive wheels, which grip elevated runway rails via frictional contact.
To ensure smooth acceleration and prevent load sway, modern systems utilize variable frequency drives that ramp up frequency gradually. As drive wheels rotate, flanged rims guide the crane bridge along the longitudinal building axis. The structural rigidity of the End Carriage Wheel Block prevents twisting or flexing under starting torque, avoiding opposing wheel binding and premature rail wear.
Synchronization between left and right carriages is critical. Advanced systems utilize electronic shaft synchronization or master-slave inverter configurations to maintain perfect alignment. In high-precision positioning applications, integrating a high-performance European End Carriage Wheel Block with 0.65kw Motor provides exact torque output and speed regulation to eliminate skewing.
Torque Transmission: Electric motors generate rotational force transferred via splined shafts into high-efficiency gearboxes, multiplying torque before driving wheel axles.
Frictional Traction: Bridge movement relies on friction between steel wheel treads and runway rails; load weight must prevent wheel slip during rapid acceleration.
Guidance and Tracking: Wheel flanges act as passive mechanical guides, while tapered treads prevent derailment during transverse wind loads or asymmetrical loading.
Maintenance Tip: Inspect gear oil levels and gearbox operating temperatures biannually; excessive heat inside the End Carriage Wheel Block indicates internal misalignment or bearing preload issues.
Comprehending overhead crane systems requires analyzing the physical sub-assemblies constituting a complete End Carriage Wheel Block unit. Each component withstands severe cyclic fatigue, high static loads, and dynamic impact forces. The structural backbone is a torsionally rigid steel box frame engineered with internal diaphragms to prevent buckling under eccentric loads.

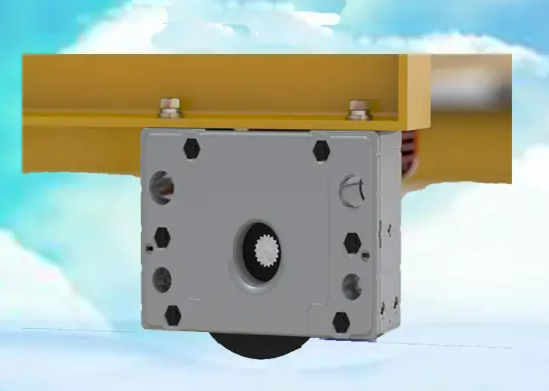

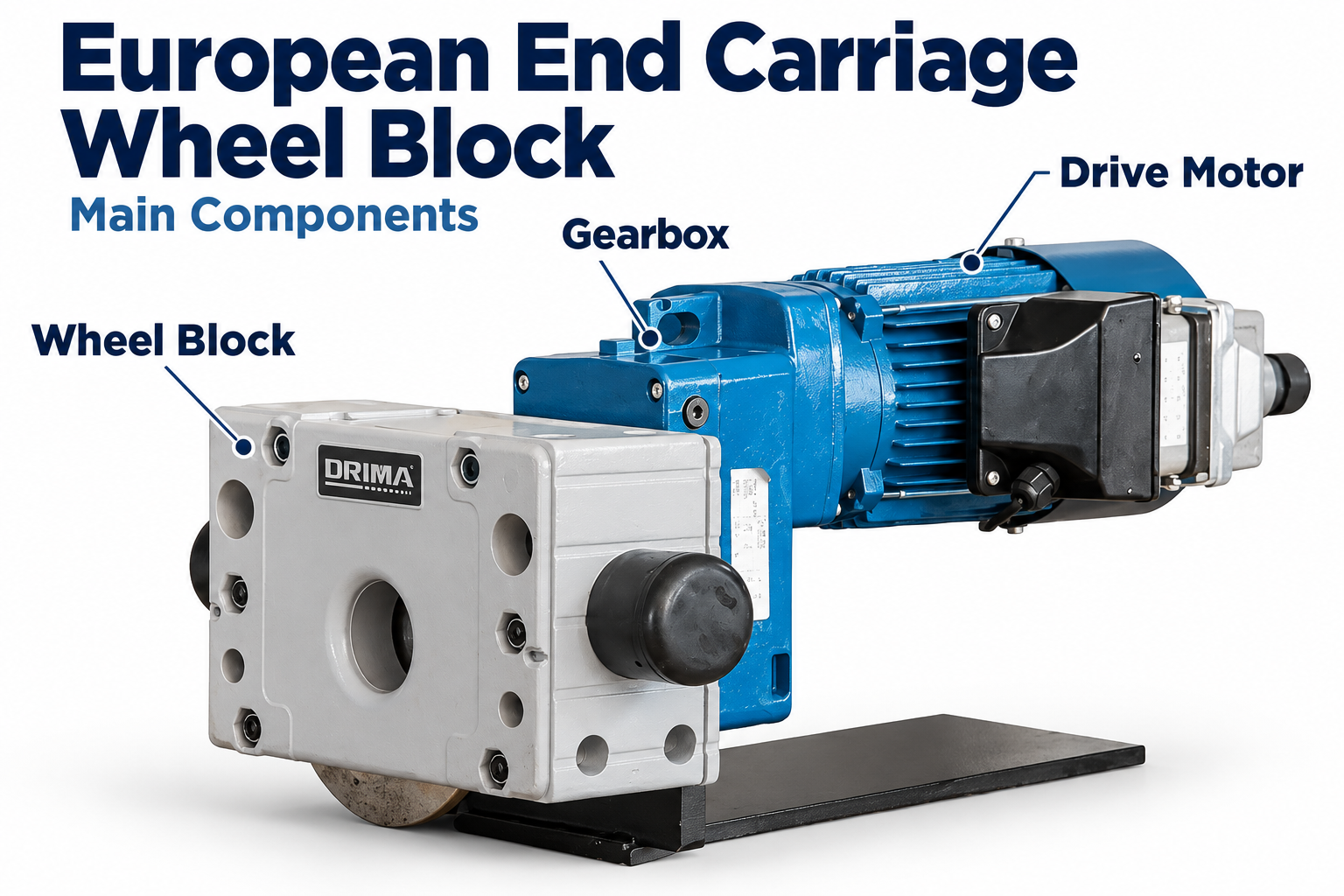

Housed within or bolted to the frame are drive units consisting of industrial electric motors, disc brakes, and multi-reduction gearboxes. Wheel assemblies comprise forged alloy steel wheels mounted on high-capacity spherical roller bearings, sealed against dust and moisture. Heavy-duty rubber buffers and mechanical end-stop plates are bolted to carriage extremities to absorb impact energy.
When specifying components for demanding environments, engineers prioritize modularity. Utilizing pre-engineered assemblies such as the European Crane Wheel Block Overhead Crane ensures wear items like wheels and bearings can be replaced with minimal downtime.
Structural Box Frame: Fabricated from laser-cut steel plates, robotically welded and stress-relieved to maintain precise squareness and dimensional stability.
Wheel Assemblies: Forged from alloy steel or ductile iron, featuring induction-hardened treads for superior wear resistance against high-hardness runway rails.
Buffer and Limiter Devices: Polyurethane energy-absorption buffers paired with adjustable mechanical limit switch striking plates.
Working Principle: Internal diaphragms welded inside the structural box frame distribute localized point loads from main girders across the carriage length, preventing concentrated stress fractures.
Industrial material handling requirements vary across sectors like steel manufacturing, automotive assembly, and warehousing. Consequently, bridge crane end carriages feature distinct configurations matching specific building geometries, span lengths, and duty cycles. Selecting appropriate carriage types directly influences hook approach dimensions and headroom utilization.
Primary classifications differentiate between top-running and under-running carriage configurations. Top-running systems ride atop runway rails, supporting heavy capacities with exceptional stability. Under-running systems operate on the bottom flange of runway I-beams, ideal for facilities with limited headroom. Within top-running models, designers distinguish between single-girder connection styles and double-girder seated configurations.
Modern European design philosophies favor modular box-section carriages equipped with advanced drive systems, such as the high-efficiency 160mm European End Carriage Wheel Block with 0.65kw Motor. These modular units enable precise wheel diameter and motor kW selection tailored to facility load requirements.
Top-Running End Carriages: Designed for heavy industrial environments, resting directly on elevated steel runway rails and handling capacities from 1 ton to over 500 tons.
Under-Running End Carriages: Suspended from runway beam bottom flanges, excellent for lower-capacity applications where maximizing floor coverage and headroom is critical.
Articulated End Carriages: Featuring hinged pin connections between multiple carriage segments, designed for multi-rail systems or extremely wide spans to prevent wheel binding.
Maintenance Tip: For articulated carriages, inspect central hinge pins and bronze bushing lubrication monthly; neglected pivot pins develop play and cause severe wheel skewing under load.
In overhead crane architecture, main girders and end carriages form an interdependent structural symbiosis. While main girders span bay widths and support hoisting trolleys, end carriages span runway widths and support main girders. Evaluating engineering differences between these elements explains how loads transfer from hooks to building foundations.
Main girders experience bending moments and vertical shear stresses distributed along their length, requiring cambered box profiles designed to minimize vertical deflection. Conversely, end carriages experience complex multi-axial loading: vertical bending from dead weight, horizontal shear from trolley acceleration, torsional twisting from skewed travel forces, and localized impact loads at wheel-rail interfaces.
Connection joints where main girders meet the End Carriage Wheel Block represent critical stress concentrations. High-strength friction-grip bolts or full-penetration welds ensure rigid moment transfer without fatigue cracking. Utilizing pre-engineered modular components, such as precision-machined connection plates found on units like the European Crane Wheel Block Overhead Crane, maintains squareness and load-bearing integrity.
Primary Stress Profile: Main girders endure vertical bending and deflection; end carriages endure combined vertical shear, lateral acceleration forces, and torsional twisting moments.
Geometry and Fabrication: Main girders are elongated horizontal beams with engineered camber; end carriages are short, rigid box-section chassis fitted with precision wheel blocks.
Maintenance Focus: Main girders require periodic non-destructive testing of weld seams; end carriages require mechanical inspection of wheel treads, gearboxes, and rail alignment.
Working Principle: End carriage connection rigidity dictates whether bridge structures maintain square geometry; angular distortion at this joint immediately causes wheel flange binding against runway rails.
Selecting optimal bridge crane end carriages requires rigorous engineering review of mechanical parameters, building constraints, and operational duty cycles. Plant procurement teams should avoid selecting components based solely on initial purchase price, as an improperly sized End Carriage Wheel Block leads to chronic wheel wear, motor burnout, and production downtime.
The selection process begins by calculating maximum wheel loads, summing total bridge and load weights divided by wheel count with dynamic amplification factors. Next, engineers evaluate runway rail sizes to ensure correct wheel tread matching and flange clearance. Other critical variables include travel speed, motor duty class, ambient operating temperature, and environmental corrosion resistance.
For standard-to-heavy manufacturing applications, specifying an advanced European modular system—such as the European End Carriage Wheel Block with 0.65kw Motor—delivers exceptional reliability, standardized maintenance spare parts, and superior energy efficiency through direct helical gear drive technology.
Calculate Maximum Wheel Load: Sum bridge dead weight and safe working load, applying a 15% dynamic uplift factor, then divide by total wheel count.
Determine Span and Wheelbase Ratio: Ensure end carriage wheelbases equal at least one-seventh to one-eighth of total crane spans to prevent skewing and jamming.
Verify Duty Classification: Select FEM/ISO duty classes matching facility operating profiles (e.g., FEM 1Am for light workshop duty, FEM 2m for continuous operations).
Maintenance Tip: Always verify runway rail joints are smooth and properly aligned; rail step joints exceeding 1mm create massive shock loads that rapidly fatigue end carriage frames and wheel bearings.
