What you'll learn:
Structural Anatomy: Master the internal mechanical composition and housing mechanics of every premium end carriage wheel block.
Types and Classification: Explore single flange, double flange, and modular variants of the end carriage wheel block across global terminal applications.
Engineering Specifications: Analyze metallurgy, surface hardening, and precision tolerances required for heavy duty port operations.
Performance Metrics: Review comparative data tables evaluating load distribution and friction coefficients for the end carriage wheel block.
Selection Protocols: Learn step by step engineering formulas to choose the correct end carriage wheel block for demanding maritime environments.
As a senior industrial crane engineering expert, I have evaluated mechanical stress distribution across port terminal machinery for years. At the core of every smooth traveling gantry system lies the precision engineered end carriage wheel block. Understanding its structural anatomy requires examining the integrated housing, high performance bearings, hardened wheel treads, and robust axle assemblies. Every component inside a modern end carriage wheel block is forged to withstand severe vertical and lateral forces during high speed container lifting operations.
The external housing of an end carriage wheel block uses high strength ductile iron or fabricated steel plates. This rigid enclosure protects internal bearings and shafts from corrosive marine salt spray, dust, and physical impacts. Within this casing, spherical or tapered roller bearings are housed with tight coaxial tolerances, absorbing dynamic radial loads and structural deflections during maximum load cycles.

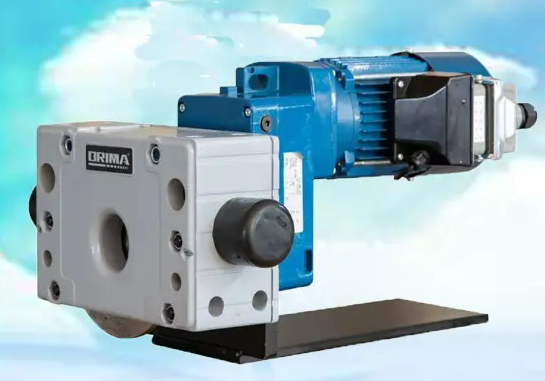

The wheel inside the end carriage wheel block is machined from 42CrMo alloy steel with induction hardening. This ensures optimal surface hardness while retaining a ductile core to prevent fatigue failure. Engineers incorporate modular drives like the 160mm European end carriage wheel block with motor for compact power transmission. For lighter auxiliary mechanisms, utilizing a modular light crane wheel block assembly provides seamless alignment across parallel runway tracks.
The housing architecture of an end carriage wheel block uses a closed box design that maintains dimensional stability under full rated capacity. This structural rigidity prevents bearing misalignment, which is the primary cause of rail wear and excessive friction in port environments.
Inside the assembly, precision machined seating bores ensure bearing clearance remains optimal across wide temperature fluctuations. For comprehensive crane modernization, exploring options via advanced industrial crane wheel block solutions guarantees full compatibility with global standards and automated stacking systems.
Navigating port machinery requires understanding how different end carriage wheel block configurations serve gantry, container crane, and rail mounted applications. Selecting the wrong wheel configuration leads to accelerated rail wear, higher energy consumption, and frequent maintenance. Classifying the end carriage wheel block by flange geometry, mounting style, and drive integration is essential for terminal reliability.

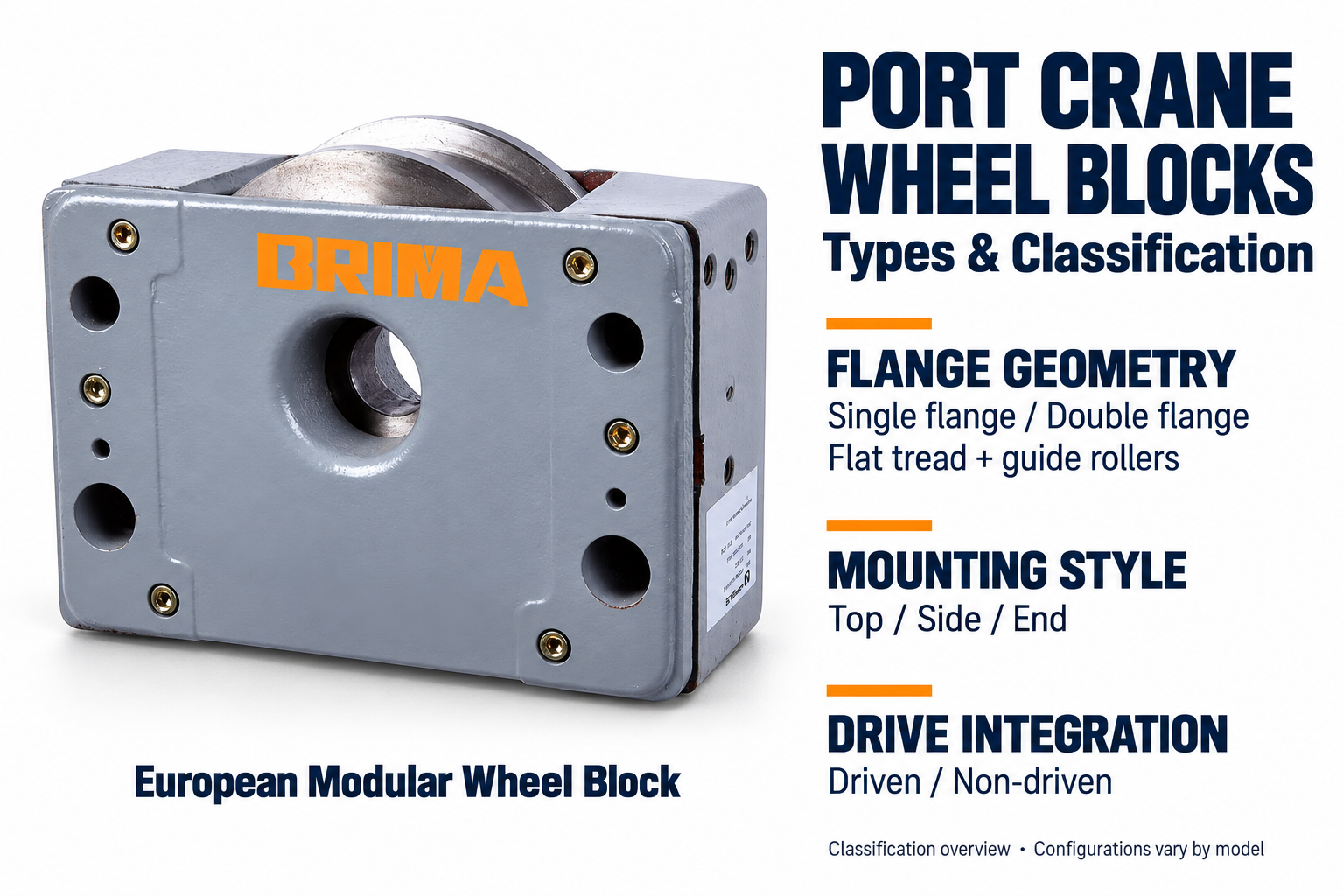

Primary classifications of an end carriage wheel block include single flanged wheels, double flanged wheels, and flat tread wheels with side guide rollers. Single flanged designs balance guidance security with reduced friction where minor track deviations exist. Double flanged designs maximize derailment protection on high elevation container cranes exposed to crosswinds. European style designs feature multi directional bolting, allowing the end carriage wheel block to be top, side, or end mounted on crane bridge end trucks.
European port operators favor modular end carriage wheel block units due to their quick installation and minimal maintenance downtime. Technicians can slide out an entire wheel cartridge without cutting, welding, or realigning the crane bridge structure. This design philosophy minimizes operational bottlenecks in automated container terminals where crane availability directly impacts vessel turnaround.
Flange geometry determines how an end carriage wheel block interacts with the crane rail. Single flanged models accommodate gauge variations smoothly, while double flanged models restrict lateral movement on rigid runways.
Mounting versatility allows top connection plates, side bolted flanges, and pin connected designs to integrate into box girders and lattice booms without compromising strength.
Designing an end carriage wheel block for ports demands strict adherence to international standards, metallurgical controls, and precise tolerances. The lifespan of an end carriage wheel block depends directly on raw material quality and surface treatment depth. Port cranes run continuously under corrosive conditions, making material selection a non negotiable priority.
The wheel in an end carriage wheel block relies on alloy steel containing chromium, molybdenum, and manganese to boost tensile strength. The tread undergoes heat treatment to reach 300 to 400 HB hardness at a deep case depth. This hardened shell resists rolling fatigue and spalling under point loads, while the tough wheel core absorbs heavy impact shocks from rail joints.
Specification Parameter | Standard Industrial Grade | Heavy Duty Port Grade | Premium European Specification |
Wheel Material | Cast Carbon Steel (ZG35) | Alloy Steel (42CrMo) | Forged Alloy Steel (SCR440) |
Tread Hardness | 220 to 260 HB | 300 to 350 HB | 380 to 420 HB (Deep Hardened) |
Bearing Type | Deep Groove Ball Bearing | Spherical Roller Bearing | High Capacity Tapered Roller Bearing |
Lubrication System | Lithium Grease Packed | High Temperature Synthetic Grease | Centralized Automated Grease Feed |
Operating Temperature | -20 degrees C to +50 degrees C | -30 degrees C to +60 degrees C | -40 degrees C to +80 degrees C |
Metallurgical purity is essential when manufacturing an end carriage wheel block. Vacuum degassing eliminates internal micro voids and inclusions that trigger fatigue cracks under cyclic loading.
Dimensional tolerances for bearing journals, axles, and wheel diameters must meet ISO standards. Micrometer level accuracy eliminates eccentricity, preventing vibration and rail wear during high speed traversal.
Evaluating an end carriage wheel block requires analyzing rolling resistance, energy loss, load capacity, and wear rates under simulated terminal stress. Advanced modular end carriage wheel block systems outperform traditional cast iron units by reducing total rolling resistance by up to fifteen percent, yielding substantial energy savings across RTG and RMG fleets.
Finite element analysis shows that optimized housings in a premium end carriage wheel block distribute bending moments uniformly across mounting bolts, preventing shear failures under eccentric loads. Enclosed cartridge style blocks also prevent moisture and grit ingress far better than open axle designs, eliminating the leading cause of bearing failure and unexpected crane downtime.
Load distribution data shows that an engineered end carriage wheel block with spherical bearings accommodates up to 2.5 degrees of structural misalignment without edge loading the tread.
This adaptability preserves both the wheel and the runway rail, lowering long term infrastructure maintenance costs for terminal operators.
Selecting the right end carriage wheel block requires calculating wheel loads, travel speeds, duty cycles, corrosiveness, and rail profiles. Procurement teams should look beyond initial costs and evaluate total ownership value, as a quality end carriage wheel block quickly pays for itself through reduced downtime and extended replacement intervals.
The selection workflow begins by calculating static and dynamic wheel loads under full working limits and wind overturning moments. Engineers then check bearing rating tables and housing limits for the end carriage wheel block, selecting a safety factor that aligns with FEM or CMAA duty standards. Marine environments also demand anti corrosive coatings, stainless hardware, and labyrinth seals.
Global clients and European port operators prioritize modularity, quick replacement, and energy efficiency when specifying an end carriage wheel block. Standardized modular units allow maintenance teams to keep minimal spare inventory while ensuring fast preventive maintenance turnarounds. This standardization underpins modern port asset management.
Sizing an end carriage wheel block starts with calculating weight distribution across all crane bridge corners, accounting for hoist loads, trolley travel, and wind pressure.
After defining peak loads, engineers select the wheel diameter, flange style, and motor transmission coupling. Ensuring complete geometric harmony between the rail profile and the end carriage wheel block guarantees smooth terminal operations.
