How to Maintain Your Electric Wire Rope Hoist?

Proper maintenance of an Electric Wire Rope Hoist system requires a systematic approach combining daily visual checks, regular scheduled inspections, precise lubrication of moving parts, thorough brake testing, and consistent maintenance log documentation to ensure optimal lifting performance, operational safety, and extended equipment lifespan in demanding industrial environments.

At a Glance

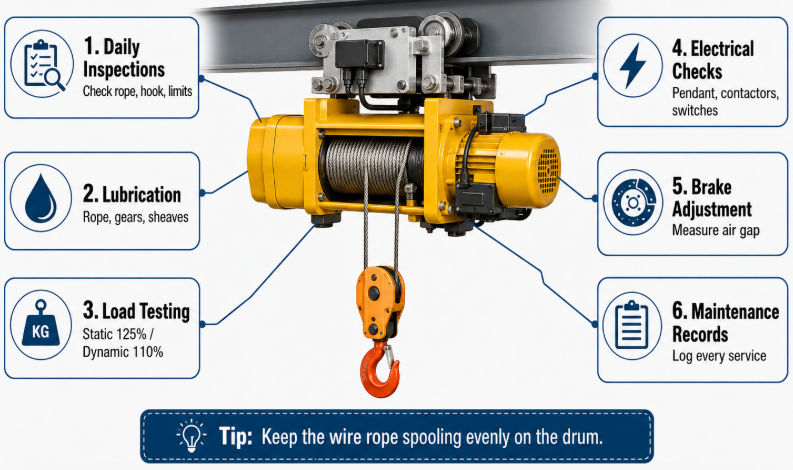

Top Maintenance Practices to Help Keep Electric Hoists Safe and Intact

To keep an Electric Wire Rope Hoist safe, reliable, and working at peak efficiency, industrial operations must establish a comprehensive maintenance framework encompassing structural inspections, automated safety limit checks, oil changes, hook measurements, and regular brake calibrations.

Implementing a robust maintenance regime for your Electric Wire Rope Hoist is not merely about fulfilling basic compliance regulations; it is a critical strategy to preserve production continuity, protect high-capital industrial assets, and safeguard human lives. Industrial material handling systems operate under continuous mechanical stress, where heavy cycles, heat generation, and atmospheric debris constantly challenge structural integrity. Without rigorous preventative care, minor issues like minor wire fraying or slight contactor pitting can rapidly escalate into severe mechanical breakdowns or catastrophic dropped loads.

A well-executed predictive and preventative maintenance philosophy ensures that every component—from the intricate electromagnetic brake coils to the heavy-duty wire rope drum—functions exactly within its specified original engineering tolerances. By proactively managing these technical parameters, facilities can avoid the steep operational costs associated with emergency corrective maintenance, unexpected manufacturing downtime, and premature equipment replacement. Utilizing advanced heavy equipment like a premium Brima 5 Ton European Double Girder Electric Wire Rope Hoist requires absolute adherence to structured inspection steps to maximize the operational return on investment and maintain smooth manufacturing flows.

Furthermore, maintaining an industrial Electric Wire Rope Hoist properly demands an understanding of how distinct mechanical and electrical sub-assemblies interact under heavy load conditions. For instance, an unlubricated rope guide will not only damage itself but will quickly induce irregular spooling across the rope drum, causing severe lateral forces that compromise the main gear reducer and electric motor bearings. Therefore, true hoist maintenance must treat the entire machine as an integrated ecosystem, where mechanical precision, electrical reliability, and structural soundness are evaluated simultaneously through systematic diagnostic routines.

Scheduled Inspections: The First Line of Defense

Routine structural and operational Electric Wire Rope Hoist inspections form the baseline of any effective industrial hoist maintenance program. These inspections are technically categorized into daily pre-operational Electric Wire Rope Hoist checks, frequent monthly evaluations, and periodic annual certified audits. The daily pre-operational Electric Wire Rope Hoist check is conducted by the trained operator before the start of every work shift, focusing primarily on visible external components to confirm that no immediate hazards exist. Operators visually analyze the wire rope for obvious kinks, birdcaging, or broken outer strands, while verifying that the upper and lower limit switches function properly without load.

Monthly frequent inspections delve deeper into the mechanical and electrical subsystems, requiring maintenance technicians to open access panels, measure specific component wear tolerances, and check the tightness of critical structural fasteners. During these sessions, technicians closely examine the rope drum for groove wear, check the hook assembly for subtle twisting or throat opening deformation, and evaluate the internal oil levels within the primary gearbox. This intermediate step ensures that gradual degradation caused by normal operational fatigue is caught and corrected long before it presents a severe threat to workplace safety.

Annual periodic inspections represent the most exhaustive level of diagnostic oversight, typically executed by certified crane inspectors who utilize specialized non-destructive testing tools to detect hidden subsurface flaws. This inspection includes ultrasonic or magnetic particle testing of the load hook, detailed insulation resistance testing of the hoist motor windings, and complete dismantling of the brake assembly to measure precise lining thickness. The complete inspection matrix ensures compliance with global standards, validating that equipment such as a robust 5000kg 6m Lifting European Electric Wire Rope Hoist Single Girder remains fully certified for demanding material handling challenges.

Lubrication: Minimizing Friction and Wear

The longevity of an Electric Wire Rope Hoist like the line is directly linked to the quality and consistency of its lubrication program. An industrial Electric Wire Rope Hoist contains multiple high-friction interface zones, most notably the internal steel core of the wire rope, the precision-cut teeth of the reduction gearbox, the heavy-duty rope drum bearings, and the pivoting sheaves within the hook block. Without a continuous, clean layer of specialized lubricant, metal-on-metal contact causes rapid abrasive wear, localized overheating, and accelerated material fatigue, severely shortening the operating life of these expensive precision components.

For the Electric Wire Rope Hoist rope itself, lubrication must serve a dual purpose: it must penetrate deep into the inner strands to minimize friction between individual wires as they bend around the drum, and it must provide an external barrier against moisture, chemical fumes, and industrial particulate contamination. Technicians should apply a high-quality, non-tacky, penetrating wire rope lubricant using a stiff brush, spray system, or specialized pressure lubricator after thoroughly cleaning the cable of old, contaminated grease. Applying regular lubricant prevents the wire rope from locking up, ensuring it remains flexible and spools perfectly into the designated drum grooves during heavy lifting cycles.

The Electric Wire Rope Hoist gearbox requires. The Electric Wire Rope Hoist drive gears must turn smoothly inside the Electric Wire Rope Hoist housing, relying on high-viscosity industrial gear oils designed to withstand extreme pressure and shock loading. The oil must be replaced completely after an initial break-in period, and subsequently changed at strict intervals based on operating hours or elapsed calendar months. Maintenance teams must routinely pull samples of the gear oil to check for suspended metallic particulate matter or water emulsification, both of which indicate internal bearing or gear tooth breakdown. Ensuring clean, high-performance lubrication within the drive system ensures the hoist retains its smooth, quiet operation under maximum heavy industrial duties.

Load Testing: Verifying Structural and Dynamic Integrity

Load testing is a critical diagnostic process that evaluates the overall structural integrity, structural soundness, and dynamic response of an Electric Wire Rope Hoist under controlled overload conditions. This technical procedure is mandatory after any significant modification, major component replacement—such as installing a new wire rope, gearbox, or motor—or as part of a regular regulatory compliance schedule. The test provides empirical proof that the hoist structure, mechanical drive train, and safety braking mechanisms are fully capable of handling their maximum rated operational capacities without structural deflection or failure.

A standard Electric Wire Rope Hoist load testing procedure involves two distinct phases: a static load test and a dynamic load test. During the static phase, the hoist is loaded to a specified percentage above its rated capacity, typically 125 percent, and suspended a few inches off the ground for a designated period to check for structural deflection, weld cracking, or structural deformation. The dynamic phase follows at 110 percent of the rated capacity, requiring the technician to operate the hoist through its full range of motion, performing multiple starts, stops, and changes in direction to verify that the motor handles the current draw and that the brakes bring the load to a secure stop without slippage.

Executing a successful load test requires rigorous planning, specialized calibrated weights, and highly trained personnel to mitigate the risks associated with testing heavy equipment under elevated stress conditions. The entire test area must be isolated from non-essential personnel, and precision monitoring equipment must be attached to the crane structure to track real-time deflection. Recording these test metrics provides a baseline data signature that allows engineers to track the aging curve of the hoisting equipment over decades of industrial service.

Electrical System Checks: Ensuring Reliable Signal and Power Delivery

The electrical infrastructure of an Electric Wire Rope Hoist is responsible for translating operator commands into safe, smooth mechanical motion. This system consists of the main power supply conductor bars, the electrical control enclosure housing magnetic contactors and transformers, the operator pendant or radio remote control, and the safety limit switches. Because industrial environments are frequently subject to severe vibration, dust buildup, and thermal cycling, electrical connections can gradually loosen or oxidize, leading to intermittent command signals, burned contactor tips, or failure of critical safety circuits.

During a comprehensive Electric Wire Rope Hoist electrical maintenance check, technicians must isolate the primary power supply and systematically torque all terminal block screws to eliminate loose connections that could cause localized overheating or voltage drops. Magnetic contactors must be visually inspected for signs of severe pitting or arc tracking across the contact surfaces; pitted contactors should be replaced immediately to prevent them from welding shut, which can create an extremely dangerous scenario where the hoist motor refuses to stop lifting. Additionally, the control pendant cable must be checked for external sheath tears and strain-relief wire integrity to ensure the internal copper conductors are never subjected to physical tensile stress.

Testing the upper and lower limit switches represents the most vital aspect of the electrical system maintenance workflow. These safety devices act as the final defense against extreme over-travel, preventing the hook block from colliding with the drum assembly or the rope from completely unspooling from the drum. Technicians must manually actuate the limit switch levers to verify the internal micro-switches snap open clean, immediately cutting power to the motor coils. Any delay in circuit interruption requires immediate replacement of the switch assembly to maintain a secure operating envelope.

Brake Inspection and Adjustments: Preventing Uncontrolled Load Drift

The braking mechanism of an Electric Wire Rope Hoist. This Electric Wire Rope Hoist brake system ensures that the Electric Wire Rope Hoist holds the load safely, tasked with holding heavy loads stationary mid-air and bringing moving loads to a controlled stop. Most modern high-performance hoists utilize a dual-braking system consisting of an electromagnetic disc brake that acts as the primary mechanical holding brake, paired with a regenerative mechanical or dynamic braking system that controls lowering speeds. Over time, the continuous friction generated during deceleration wears down the friction disc linings, creating a wider air gap that can lead to delayed brake engagement or hazardous load drift.

Maintenance personnel must regularly measure the brake air gap using precision feeler gauges to ensure it remains within the exact technical parameters defined by the original equipment manufacturer. If the gap exceeds the maximum wear limit, the internal armature plate will take longer to compress the brake springs, causing the load to drop slightly before the friction pads grip the rotor. Adjusting the air gap involves tightening or loosening calibrated adjustment collars, allowing the maintenance team to restore the precise clearances required for instantaneous brake engagement.

In addition to measuring clearances, the friction linings must be carefully checked for signs of contamination, such as gear oil leakage or heavy grease migration from nearby bearings. Oil-soaked brake pads lose their friction coefficient and cannot hold rated loads safely; such contaminated pads must be replaced immediately, and the underlying shaft seals must be repaired to prevent recurring oil ingress. Regular inspection of the brake coil resistance using a digital multimeter also ensures that the internal electrical windings are not shorted or degraded by thermal heat stress.

Environmental Considerations: Adapting to Harsh Operating Conditions

The operational environment of a manufacturing facility plays a massive role in dictating the actual degradation rate of an Electric Wire Rope Hoist, meaning that generic maintenance schedules must often be customized to match local site realities. Hoists operating in clean, climate-controlled warehouses require standard maintenance intervals, whereas units deployed in foundries, chemical processing facilities, maritime ports, or outdoor concrete yards face elevated risks that demand far more frequent maintenance oversight. High ambient heat, corrosive chemical vapors, airborne abrasive dust, and ambient moisture all work to accelerate mechanical wear and electrical corrosion.

In high-dust or abrasive environments, such as cement plants or steel manufacturing mills, fine particulate matter settles on the lubricated surfaces of the wire rope and gear teeth, forming an abrasive grinding paste that destroys metal profiles. In these specific applications, maintenance teams must utilize dry or non-tacky specialized lubricants that repel dust, while increasing the frequency of wire rope cleaning cycles. Enclosure breathers and seals must also be checked regularly to prevent fine particulate matter from entering the electrical control boxes and causing short circuits across contactor terminals.

For hoists installed outdoors or in highly humid maritime settings, moisture infiltration poses a constant threat in the form of oxidation, rust, and galvanic corrosion. Condensation inside the electrical housing can cause rapid corrosion of delicate terminal blocks and micro-switches, necessitating the installation of internal space heaters to keep the internal air temperature above the dew point. Wire ropes used in these damp environments must feature heavy galvanized coatings, and inspectors must look closely for internal rust pockets that hide beneath the outer strands, which can secretly compromise the ultimate breaking strength of the hoisting cable.

Training and Safety Procedures: The Human Factor in Preventative Care

While physical component inspections and mechanical calibrations are critical, the human factor remains an essential element of a holistic hoist maintenance philosophy. The way operators handle the equipment on a daily basis directly influences how fast components wear down and how frequently components fail. Side-pulling, sudden plugging, and rapid reversing of the hoist motor introduce immense shock loads into the structural chassis, causing premature gear chipping, rope guide breakage, and severe structural fatigue that cannot be easily mitigated by lubrication alone.

Comprehensive operator training programs must emphasize proper handling techniques, ensuring all personnel understand the structural limitations of the hoist and can recognize early operational warning signs. Operators must be trained to listen for abnormal acoustic signatures, such as grinding noises in the gearbox or humming sounds in the motor, which indicate immediate bearing failure or electrical phase imbalance. Empowering operators to immediately report these subtle visual or audible changes allows the maintenance department to address minor problems before they cascade into major component failures.

Furthermore, safety during the execution of maintenance tasks themselves must be rigidly managed through comprehensive Lockout-Tagout protocols and secure platform positioning. Technicians must completely isolate all upstream electrical disconnect switches and discharge any residual capacitance before entering the upper crane runway or touching internal control components. Utilizing proper Personal Protective Equipment, fall protection harnesses, and certified staging equipment ensures that maintenance operations can be performed efficiently without introducing safety risks to the service team.

Documentation and Record-Keeping: Building a Verifiable Asset History

An exceptional hoist maintenance program is only as good as the documentation that supports it. Maintaining detailed, well-organized records of every inspection, lubrication cycle, component replacement, and load test is not only a regulatory requirement under global industrial safety mandates, but it also serves as an invaluable diagnostic asset. A comprehensive maintenance log allows engineering managers to analyze wear trends over time, predict when specific components like wire ropes or brake pads will reach their wear limits, and optimize spare parts inventory levels based on actual historical consumption data.

Each entry in the Electric Wire Rope Hoist maintenance journal. Every Electric Wire Rope Hoist requires an Electric Wire Rope Hoist log sheet, including the precise date of service, the exact operating hours recorded from the hour meter, a detailed description of the findings or actions taken, the specific parts used, and the signature of the technician who completed the work. In the modern era, this tracking is increasingly managed through digital Computerized Maintenance Management Systems, which automatically trigger maintenance alerts based on elapsed calendar time or run-shift metrics. Having this detailed data readily accessible ensures that during safety audits or insurance evaluations, the company can provide clear proof of structural compliance and operational safety.

Furthermore, analyzing these long-term records can reveal underlying systemic issues within the production environment. For instance, if a specific hoist requires wire rope replacement twice as often as identical units in the same bay, the maintenance logs can point engineers toward investigating localized operator errors, recurring severe side-pulls, or specific environmental factors unique to that workstation. Ultimately, robust documentation transforms maintenance from a reactive, unpredictable expense into a controlled, data-driven optimization strategy that protects both the workforce and the corporate bottom line.

Comprehensive Summary and Global Recommendations

Properly maintaining your Electric Wire Rope Hoist is an ongoing investment in workplace safety, operational reliability, and manufacturing efficiency. By sticking to a strict schedule of pre-shift visual checks, detailed monthly inspections, and thorough annual certified overhauls, industrial operations can prevent major breakdowns, maximize asset lifespan, and ensure compliance with strict safety regulations. Clean, targeted lubrication keeps the mechanical parts moving smoothly, while detailed electrical checks and precise brake adjustments keep the system responsive and prevent dangerous load slipping.

When your operation handles high-capacity lifting challenges, relying on heavy-duty, professionally engineered equipment is crucial. Utilizing advanced systems like the reliable Brima Electric Wire Rope Hoist line ensures that your facility benefits from high-grade structural designs and robust safety mechanisms built to withstand heavy daily use. Combining this premium equipment with structured operator training and thorough maintenance records creates a safe, highly efficient, and productive material handling environment for years to come.
