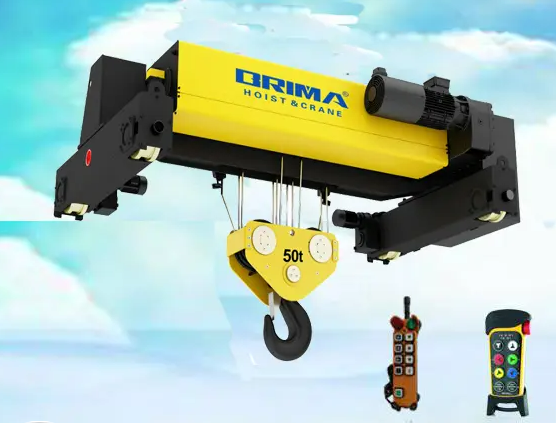

An Electric Wire Rope Hoist is a heavy-duty industrial lifting device powered by an electric motor that utilizes wire rope wound around a grooved drum to efficiently raise, lower, and transport heavy loads along structural runways or overhead crane girders within manufacturing, logistics, and material handling environments.
What does a Hoist do?
Different types of hoists and their applications
How to select a suitable Hoist for yourself?
Why is BRIMA the best manufacturer of hoists?
An industrial hoist functions as the central mechanical lifting unit engineered to verticalize heavy materials, accurately position loads, and optimize overhead factory space by translating rotational motor power into high-torque linear lifting force through specialized wire ropes or chains.
In modern industrial facilities, the primary role of a lifting apparatus is to bridge the gap between heavy material storage and production processing. When utilizing an Electric Wire Rope Hoist, factories can streamline their production lines significantly. By handling immense physical loads that exceed human capacity or standard manual equipment, these electronic systems eliminate manual labor bottlenecks and maximize mechanical handling efficiencies across diverse production environments.
Beyond simple vertical movement, advanced units facilitate precise lateral alignment when integrated with motorized trolleys. The mechanical interaction between the internal electric brake, planetary gear reducers, and high-tensile steel wire ropes ensures that tons of structural material remain completely stable at any given elevation. This micro-positioning capability is absolutely vital in heavy machinery assembly, automotive manufacturing, and casting foundries where misalignments of even a few millimeters can cause severe manufacturing errors or compromise workplace safety parameters.
Furthermore, these industrial hoists act as a protective buffer for both physical facilities and human operators. Equipped with electronic overload limit switches, thermal sensors, and dual-speed configurations, an Electric Wire Rope Hoist actively prevents structural overstrain on industrial building columns and overhead crane runways. By establishing automated boundaries for speed and lifting weight, the hoist guarantees consistent operational safety while processing bulk components under rigorous daily production schedules.
Main Component | Technical Description & Functionality |
Electric Motor | High-torque, squirrel-cage design with integrated cooling fins and thermal protection sensors. |
Rope Drum | Precision-grooved steel drum engineered to guide the wire rope neatly and prevent overlaps. |
Gearbox | Multi-stage planetary or helical gear configuration designed for optimal torque transformation. |
Wire Rope | High-tensile, galvanized or regular lay steel rope with superior core elasticity and breaking strength. |
Braking System | Electromagnetic disk brake system that automatically engages instantly whenever the power supply is cut. |
Working Principle: The Electric Wire Rope Hoist operates by drawing electrical current into a high-torque induction motor. This motor transfers rotational energy directly into a multi-stage reduction gearbox. The gearbox reduces the rotational speed while multiplying the torque output, driving the precision-machined rope drum. As the drum revolves, the high-tensile steel wire rope is either wrapped into or uncoiled from the precision-machined guide grooves, converting the rotational kinetic energy into predictable vertical linear motion to handle heavy loads smoothly. |
Industrial hoisting machinery is divided into multiple classifications based on power source, layout design, and mechanical configurations, with electric wire rope variants and electric chain variants serving distinct roles based on workspace constraints, weight capacity targets, and operation frequencies.
To choose the correct lifting system, engineers must understand the distinction between standard single girder configurations and advanced double girder configurations. For light to medium industrial duties, a single girder system is standard practice. To achieve optimal performance in these setups, facility operators frequently implement the high-efficiency European single girder electric wire rope hoist, which maximizes lateral hook travel and fits cleanly beneath lower roof profiles without requiring extensive facility modifications.
For heavy duty cycles and extreme weight limits, double girder systems are mandatory. Double girder systems mount the hoisting mechanism directly on top of two parallel crane bridges, allowing for much higher weight capacities and increased lifting heights since the hook can rise up between the two beams. When managing large-scale manufacturing yards or heavy steel warehouses, integrating a heavy-duty European double girder electric wire rope hoist for overhead cranes delivers unparalleled stability and maximum hook height, keeping complex operations safe and organized.
Moreover, the classification extends into specialized environmental designs, such as explosion-proof hoists for oil and gas refineries, corrosion-resistant stainless steel setups for chemical processing operations, and cleanroom hoists for pharmaceutical manufacturing lines. Each distinct design incorporates customized seals, specialized materials, and unique structural shielding to withstand aggressive operational environments without experiencing premature component degradation or structural failure during prolonged operations.

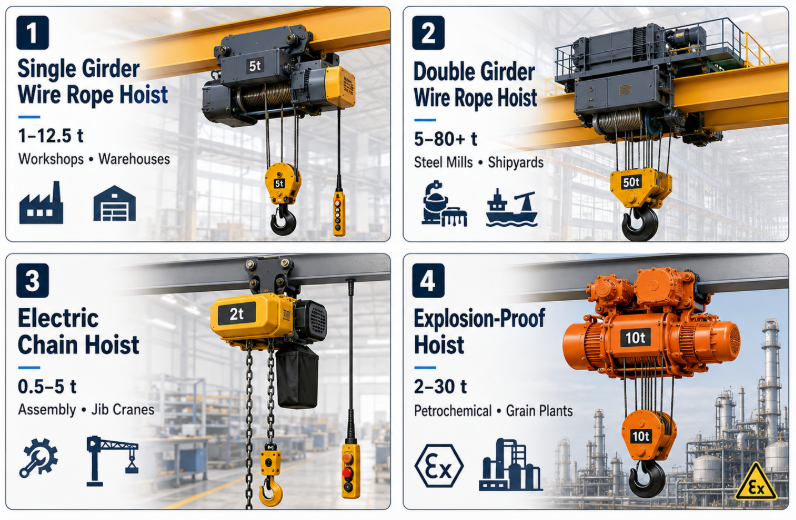

Hoist Configuration Type | Typical Load Range | Primary Industrial Applications |
Single Girder Electric Wire Rope Hoist | 1 Ton to 12.5 Tons | General manufacturing workshops, maintenance bays, and lighter warehousing setups. |
Double Girder Electric Wire Rope Hoist | 5 Tons to 80+ Tons | Heavy steel mills, automotive assembly lines, shipyards, and heavy scrap metal yards. |
Electric Chain Hoist | 0.5 Tons to 5 Tons | Precision machining stations, workstation jib cranes, and localized assembly benches. |
Explosion-Proof Hoist | 2 Tons to 30 Tons | Petrochemical plants, offshore drilling platforms, and grain processing facilities. |
Selecting the ideal hoist involves calculating key operational parameters including total rated load capacity, necessary vertical lifting height, required travel speeds, duty cycle ratings, and specific environmental factors to match the mechanical capabilities of the hoisting equipment with your workshop demands.
The selection process begins with an accurate assessment of your maximum load requirements. It is a critical engineering mistake to purchase a system that operates constantly at 100% capacity. Instead, selecting an Electric Wire Rope Hoist with a rated capacity that safely exceeds your heaviest standard load provides a critical safety margin and reduces structural wear on internal gears and bearings. For example, if your typical load is 4 tons, integrating a high-performance 5-ton or 10-ton Electric Wire Rope Hoist ensures that the machine operates comfortably within its structural limits, drastically reducing long-term maintenance costs and unexpected downtime.
Next, engineers must evaluate the daily duty cycle and operational frequency, typically defined by ISO or FEM standards (such as 1Am, 2M, or 3M ratings). A workshop that operates twenty-four hours a day requires a heavy-duty Electric Wire Rope Hoist with an oil-bath lubrication system, heavy duty cycle motors, and advanced thermal dissipation features. Conversely, a maintenance facility that only lifts machinery once or twice a day can utilize a more economical, standard-duty model without risking premature breakdown or compromising job site safety guidelines.
Finally, specific structural and spatial dimensions must be evaluated. Measure the total vertical distance from the floor to the crane runway rail to determine the required length of your wire rope. Additionally, consider the available headroom; if your facility has low ceilings, a low-headroom single girder Electric Wire Rope Hoist is necessary to maximize your usable vertical lifting area. Ensure that the electrical supply of your facility matches the voltage configuration of the hoist motor to prevent phase imbalances or electrical supply damage during startup acceleration sequences.
Selection Criterion | Key Technical Metric | Operational Evaluation Importance |
Rated Capacity | Tons (t) / Kilograms (kg) | Prevents mechanical overload and guarantees structural safety margins. |
Lifting Height | Meters (m) | Determines total wire rope length and drum capacity configurations. |
Lifting & Travel Speed | Meters per Minute (m/min) | Directly influences overall production cycle times and material throughput. |
Duty Class (FEM/ISO) | 1Am, 2m, 3m / M3, M4, M5, M6 | Matches the motor thermal limits with daily operation runtimes. |
Power Supply | Voltage / Phase / Frequency | Ensures electrical compatibility with localized factory power grids. |
Maintenance Guidelines: To maximize the lifespan of an Electric Wire Rope Hoist, operators must perform daily inspections of the rope guide and wire rope condition, checking thoroughly for any structural kinking, crushing, or broken strands. Ensure that the mechanical limit switches function correctly before starting work shifts, and verify that the gearbox maintains optimal oil levels using the integrated site glass. Lubricating the high-tensile wire rope periodically with specialized industrial rope dressing prevents internal friction wear and guards against environmental corrosion scaling. |
BRIMA stands as an industry leader in material handling manufacturing by engineering high-performance Electric Wire Rope Hoist systems that utilize premium European design standards, advanced structural safety mechanisms, and robust modular component integration.
Every industrial hoisting system manufactured by BRIMA is designed to deliver exceptional reliability under intense structural stress. By integrating advanced modular designs, BRIMA ensures that maintenance tasks are simple and component replacement costs remain low. Their specialized high-performance Electric Wire Rope Hoist systems are built with hardened alloy gearsets and robust electromagnetic braking systems that engage automatically during power losses, protecting valuable workspace assets and ensuring worker safety across your entire facility floor.
Furthermore, BRIMA implements strict quality control protocols across every stage of production. From initial raw material selection to final high-load dynamic testing, every single component is verified to comply with rigorous international manufacturing frameworks. This obsessive commitment to engineering precision guarantees that each finished Electric Wire Rope Hoist delivers smooth lifting operation, minimal vibrational feedback, and enhanced power efficiency, leading to lower operating expenses for your commercial enterprise.
Beyond outstanding product design, BRIMA provides comprehensive technical support and customized engineering solutions tailored to unique factory layouts. Whether your team requires a customized low-headroom configuration for restrictive workspaces or a heavy-duty crane integration for a massive foundry environment, BRIMA engineers deliver precise CAD blueprints, clear electrical schematics, and comprehensive layout guidance. This dedicated customer support ensures that your material handling infrastructure operates at peak efficiency for decades to come.
BRIMA Feature | Technical Implementation | Operational Advantage for Users |
European Design Integration | Compact structural layout with low-headroom configurations. | Maximizes usable vertical space and increases total lifting heights. |
Variable Frequency Drives | Schneider or equivalent high-grade VFD control packages. | Provides step-less acceleration, reducing load swing and mechanical shock. |
High Protection Rating | IP55 or IP66 fully enclosed motor and electrical control enclosures. | Guarantees reliable functionality in dusty, humid, or outdoor workspaces. |
Advanced Safety Systems | Integrated dual-stage limit switches and electronic overload cutoffs. | Actively prevents hazardous operational overloads and structural impacts. |
In summary, investing in a premium Electric Wire Rope Hoist is a strategic operational decision that permanently upgrades your factory material handling capacity, improves site-wide workplace safety protocols, and boosts daily logistics productivity. By understanding the mechanical principles, evaluating detailed configuration types, and choosing a trusted manufacturing partner like BRIMA, your industrial facility secures a durable asset engineered to drive consistent commercial growth and maintain operational excellence across all your manufacturing operations.
