An Electric Wire Rope Hoist is an advanced heavy-duty lifting mechanism driven by an electric motor that utilizes steel wire ropes wound around a grooved drum to vertically lift, lower, and horizontally traverse heavy industrial loads with exceptional precision and structural safety. Engineered for demanding industrial manufacturing, foundry, warehousing, and infrastructure environments, this equipment delivers substantial load capacities, optimized headroom utilization, and robust performance under intensive lifting cycles, making it an indispensable foundation of modern material handling systems worldwide.
Section | Summary |
|---|---|
Key Components of an Electric Wire Rope Hoist | A comprehensive analysis of the essential engineering assemblies including the high-torque electric motor, precision gearbox, grooved rope drum, durable steel wire rope, safety load hook, and advanced control systems that collectively enable heavy-duty industrial lifting operations. |
Step-by-Step Working of an Electric Wire Rope Hoist | An analytical breakdown of the precise mechanical and electrical sequence involved in power transmission, rotation conversion, wire rope winding, and load manipulation during standard operational cycles. |
Benefits of an Electric Wire Rope Hoist | An exploration of the core operational advantages provided by these hoists, detailing their high load capacity, smooth operation, long service life, specialized safety features, energy efficiency, and functional versatility. |
Types of Electric Wire Rope Hoists | A comparative technical breakdown focusing on structural configurations, distinguishing between single girder models optimized for standard workspaces and double girder configurations built for extreme capacities. |
Features of Electric Wire Rope Hoists | An overview of the fundamental design innovations, control interfaces, material specifications, and intelligent overspeed mechanisms integrated into premium modern lifting machinery. |
Why Choose BRIMA for Electric Wire Rope Hoists? | A detailed synthesis of industry-leading engineering, rigorous material testing, global safety compliance, and bespoke customization capabilities that define professional heavy lifting equipment manufacturing standards. |
The essential components of an Electric Wire Rope Hoist consist of a heavy-duty lifting motor, an enclosed reduction gearbox, a grooved winding drum, high-tensile steel wire ropes, a specialized hook block assembly, and an intelligent electrical control system, all integrated into a unified structural chassis designed to manage substantial mechanical stress.
Every industrial Electric Wire Rope Hoist relies on the seamless interaction of several meticulously engineered sub-assemblies. The primary prime mover is the electric hoist motor, which typically features a conical rotor design to incorporate an integrated mechanical brake mechanism. This configuration ensures that the moment the electrical current is terminated, the brake engages automatically via spring force, instantly holding the suspended load secure without relying solely on electrical controls.
The mechanical energy generated by the motor is transmitted through a high-precision reduction gear train. This gearbox is enclosed in an oil-bath housing to provide continuous lubrication, minimize thermal buildup, and reduce acoustic emissions during extended operation. The reduced high-torque rotational output is then transferred directly to the grooved rope drum. The precision helical machining on the surface of the drum guides the steel wire rope uniformly, preventing overlapping, minimizing lateral friction, and significantly mitigating premature wire rope wear.
For a detailed breakdown of the structural elements comprising a premium industrial system, review the comprehensive component breakdown below:
Component Name | Primary Material / Specification | Engineering Function & Operational Value |
|---|---|---|
Lifting Motor | Class F Insulation, IP55 protection rating | Generates the primary high-torque rotational forces required for heavy vertical acceleration. |
Reduction Gearbox | Alloy Steel (20CrMnTi), hardened to HRC 58-62 | Reduces high motor speeds down to optimal lifting velocities while multiplying output torque. |
Rope Drum | High-grade seamless steel pipe or Q345 steel | Features precision helical grooves to guide the wire rope smoothly during winding cycles. |
Steel Wire Rope | High-tensile galvanized steel wire rope, 1770/1960 N/mm² | Provides high structural breaking strength, exceptional flexibility, and long-term wear resistance. |
Rope Guide | Spheroidal graphite cast iron or heavy wear polymer | Ensures the wire rope remains correctly aligned within the drum grooves, preventing slack or bird-caging. |
Hook Assembly | Forged carbon steel (DG20) with safety latch | Connects the hoist to the external load, featuring 360-degree rotation to eliminate rope twisting. |
Control Panel | Schneider/Siemens contactors inside an IP55 enclosure | Manages the electrical distribution, variable frequency drives, and safety limit switches. |

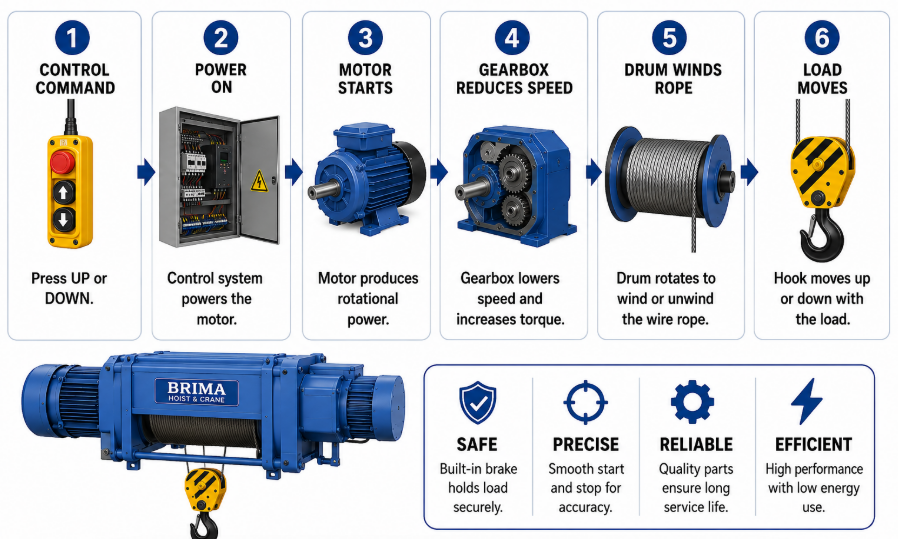

The operational process of an Electric Wire Rope Hoist involves translating electrical command signals into high-torque mechanical rotation via the hoist motor, which drives a reduction gearbox to rotate the grooved drum, thereby winding or unwinding the high-tensile steel wire rope to safely raise or lower heavy industrial loads.
The operational cycle begins when the operator actuates a directional control on a pendant or wireless remote control interface. This action sends a low-voltage control signal to the centralized electrical enclosure, energizing the primary magnetic contactors or modulating the output frequency via a Variable Frequency Drive (VFD). The sudden influx of electrical energy releases the electromagnetic brake mechanism while simultaneously exciting the stator windings of the lifting motor, initiating smooth, controlled shaft rotation.
As the motor shaft rotates at high speed, its energy is transferred directly into the input stage of the reduction gearbox. The internal helical or spur gears, which are precisely machined from case-hardened alloy steel, decrease the rotational speed to a stable lifting velocity while concurrently multiplying the mechanical torque. This intensified torque turns the main drive shaft connected to the grooved rope drum, initiating steady rotation of the heavy steel cylinder.
Depending on the selected directional input, the high-tensile steel wire rope is either reeled into the drum grooves or unreeled. When lifting, the rope guide travels laterally across the drum surface, forcing the wire rope to lay perfectly into its designated tracks. This controlled movement pulls the multi-reeved hook block vertically upward, distributing the physical forces evenly across all rope falls to ensure a perfectly level lift. When the operator releases the button or the hook reaches the maximum pre-set limit switch, power to the motor is cut, and the mechanical brake immediately engages to lock the load in position.
The core advantages of utilizing an industrial Electric Wire Rope Hoist include exceptional structural load-carrying capacities, exceptionally smooth and stable multi-speed operation, remarkable long-term durability under harsh environmental conditions, multi-layered active safety features, maximized energy efficiency, and broad versatility across divergent industrial applications.
Electric wire rope hoists are explicitly engineered to handle substantial, high-tonnage industrial loads that exceed the functional limits of standard chain-driven lifting mechanisms. By distributing the total suspended weight across multiple strands of high-tensile steel wire rope, these units minimize the individual localized stresses placed on the structural framework of the hoist. This structural load distribution permits safe, reliable configurations capable of handling heavy industrial weights, ranging from standard workshops to massive steel mills and shipbuilding yards.
The integrated utilization of advanced Variable Frequency Drives (VFDs) and precision helical gearboxes ensures that the acceleration and deceleration phases of lifting are completely smooth and continuous. This progressive speed ramp-up eliminates the sudden mechanical jarring common in single-speed alternative hoists, protecting the integrity of sensitive loads and reducing fatigue on the supporting overhead gantry structures. Furthermore, the continuous alignment provided by a heavy-duty rope guide eliminates vibration, delivering steady, whisper-quiet performance during intensive material handling tasks.
Constructed with robust, case-hardened components and protected within heavy IP55-rated enclosures, an Electric Wire Rope Hoist is designed to endure continuous, long-term operation in demanding environments. The steel wire ropes are highly resistant to sudden impact forces and structural kinking, while the oil-bath lubrication inside the gearbox prevents metal-on-metal friction and thermal degradation. This industrial-grade resilience results in a significantly extended service life, less frequent replacement schedules, and a vastly optimized total cost of ownership for modern industrial enterprises.
Safety is a cornerstone of modern industrial hoist design, achieved through multiple overlapping protective mechanisms. These include dual-stage adjustable screw limit switches that prevent dangerous over-hoisting or over-lowering, electronic overload limiters that automatically cut power if the rated capacity is exceeded, and thermal sensors embedded within the motor windings to prevent overheating. Additionally, the fail-safe electromagnetic disk brake acts immediately during a sudden power interruption, completely eliminating the risk of un-controlled load drops.
Modern lifting systems incorporate high-efficiency motors designed to minimize electrical current consumption during high-torque acceleration phases. By optimizing the tooth geometry within the reduction gearbox and utilizing low-friction bearings throughout the entire drive train, these systems convert a higher percentage of raw electrical energy into effective vertical lifting force. This operational efficiency drastically reduces overall plant energy overheads while contributing to the sustainability initiatives of modern green manufacturing facilities.
With highly adaptable reeving configurations (such as 2/1, 4/1, or 4/2) and customizable mounting options, these hoists can be seamlessly integrated into standard overhead cranes, heavy gantry setups, or stationary monorail tracks. They can also be customized with specialized explosion-proof components for chemical plants, heat-shielded enclosures for metallurgical foundries, and corrosion-resistant finishes for maritime ports, proving their incredible flexibility across the industrial spectrum.
The primary types of industrial lifting mechanisms include Single Girder Electric Wire Rope Hoists, which travel along the bottom flange of a single crane beam for standard applications, and Double Girder Electric Wire Rope Hoists, which sit atop two parallel crane beams to handle massive capacities and provide maximum hooks heights.
Selecting the ideal crane hoist architecture requires an understanding of structural single-beam versus double-beam crane applications. For facilities seeking an efficient low-headroom solution that maximizes vertical travel within restricted building spaces, the high performance low-headroom single girder electric wire rope hoist provides an exceptional balance of compact layout, smooth trolley travel, and reliable structural support for medium-weight industrial applications.
For heavy industrial environments that demand high hook heights, heavy lifting capacities, and intensive work cycles, a double girder configuration is essential. The heavy duty double girder electric wire rope hoist is engineered to travel along the top face of parallel bridge girders, providing superior structural stability, easier access for routine maintenance, and the ability to integrate auxiliary lifting hooks for complex, high-capacity industrial lifting tasks.
To compare the specific mechanical differences and operating limits between these two main hoist configurations, refer to the technical comparison table below:
Technical Metric | Single Girder Configuration | Double Girder Configuration |
|---|---|---|
Typical Capacity Range | 1 Ton to 20 Tons | 5 Tons to 100+ Tons |
Trolley Travel Position | Suspended from the bottom flange of a single beam | Rides on top of rails fixed to parallel double beams |
Headroom Efficiency | Excellent; optimized for low ceiling clearance | Standard; hoist body sits above the crane girders |
Duty Cycle Classification | FEM 1Am / 2m (M4 / M5) | FEM 2m / 3m (M5 / M6) heavy duty |
Max Lifting Heights | Generally up to 18-24 meters | Extremely high; can exceed 50+ meters as required |
Maintenance Accessibility | Compact; requires standard platform access | Highly accessible; allows direct technician walk-ways |
The prominent design features of a modern Electric Wire Rope Hoist encompass state-of-the-art European structural ergonomics, integrated digital safety monitoring displays, modular component layouts for rapid servicing, variable speed frequency modulation, and highly resilient material treatments engineered to combat atmospheric corrosion.
Modern advanced hoists utilize low-headroom European structural designs, which significantly reduce the physical envelope of the hoist body compared to traditional boxy models. This compact engineering allows for maximum hook travel, enabling factories to build shorter facilities while achieving identical vertical lifting clearance. The modular architecture separates the motor, gearbox, drum, and electrical panel into distinct, self-contained units, ensuring that any single component can be inspected, serviced, or replaced without dismantling adjacent mechanical assemblies.
On the control side, these hoists feature premium variable frequency systems for both hoisting and cross-travel trolley movements. This advanced electronic control completely eliminates jerky step-transitions, drastically reduces load sway during structural indexing, and protects internal mechanical gear tooth profiles from sudden impact stresses. Additionally, integrated smart monitoring blocks track remaining safe work periods, log exact motor start cycles, record overload instances, and display real-time diagnostics to operations managers via clear digital telemetry interfaces.
Crucial Maintenance Tip: Regular and systematic lubrication of the steel wire rope is essential to prevent internal strand friction and atmospheric corrosion. Operators must perform a daily visual inspection of the rope guide assembly to ensure it moves smoothly across the drum and prevents any cross-winding of the rope. Never operate a hoist if the wire rope shows signs of kinking, flattened outer strands, or bird-caging, as these structural defects can reduce the breaking strength of the rope and present an immediate safety hazard to workshop personnel.
Choosing BRIMA as your premium material handling manufacturer guarantees access to world-class European-engineered lifting technologies, rigorously tested structural components that comply with stringent global safety standards, competitive factory-direct commercial terms, and dedicated lifetime engineering support tailored to your unique industrial requirements.
BRIMA has established an international reputation for excellence by fusing advanced European design principles with state-of-the-art manufacturing precision. Every single hoist produced undergoes rigorous factory load testing at 125% of its rated structural capacity, ensuring complete operational reliability prior to global shipment. By utilizing premium international electrical components, including Schneider contactors and advanced digital overload protection systems, BRIMA hoists deliver unparalleled reliability, minimizing unexpected factory downtime and lowering long-term operating costs.
Furthermore, BRIMA provides comprehensive end-to-end material handling customization. Whether your facility requires specific low-headroom configurations for tight spaces, advanced dual-speed configurations for precision assembly lines, or explosion-proof certifications for hazardous chemical environments, BRIMA’s expert engineering team designs bespoke solutions that align with your exact specifications. This deep commitment to engineering excellence is backed by a fully stocked global spare parts inventory and responsive technical support teams, ensuring that your heavy lifting operations remain continuously productive and completely safe for decades to come.
In summary, the Electric Wire Rope Hoist represents a critical cornerstone of modern high-capacity material handling infrastructure, combining advanced mechanical power transmission with intelligent electronic safety controls to deliver unparalleled lifting performance. From the core structural synergy of its high-torque motors and precision-grooved winding drums to the distinct architectural advantages offered by single and double girder crane configurations, investing in premium-tier hoisting equipment is paramount for optimizing plant safety and operational throughput. By partnering with an industry-leading manufacturer like BRIMA, industrial facilities gain access to robust European-engineered lifting systems that maximize headroom, enhance energy efficiency, and ensure long-term structural reliability, thereby securing a highly sustainable and profitable total return on industrial capital investment.
