Precision-engineered end carriage wheel blocks serve as the critical mechanical interface between overhead crane bridges and runway rail systems, translating rotational motor torque into stable, synchronized long travel motion while absorbing multi-axis dynamic loads.
What you'll learn:
Anatomy: Detailed breakdown of spherical roller bearings, forged alloy steel wheels, and housing tolerances.
Dynamics: Mechanics of rail interaction, lateral guidance forces, and drive torque transmission.
Modularity: Advantages of interchangeable block housings in reducing downtime and installation complexity.
Maintenance: Systematic approaches to wear tracking, lubrication management, and alignment correction.
Selection: Engineering parameters for matching wheel capacity to span and duty class.
The structural integrity of an overhead crane system begins at the runway interface. An End Carriage Wheel Block is not merely a passive rolling element; it is a high-stress mechanical assembly subjected to combined radial and axial loads. The wheel housing is typically manufactured from high-grade spheroidal graphite cast iron or precision-machined structural steel fabrications designed to withstand extreme torsional twisting during heavy lifts.
To achieve optimal wear resistance and fatigue strength, the crane wheels themselves are forged from high-tensile alloy steel, such as 42CrMo or equivalent high-grade carbon steels. The tread surfaces undergo deep induction hardening, achieving surface hardness values typically ranging from HRC 50 to 55 to a controlled depth of several millimeters, while maintaining a tough, ductile core to resist impact shock loads. This dual-zone metallurgical structure prevents catastrophic spalling under heavy point loads.
Furthermore, the integration of spherical roller bearings within the End Carriage Wheel Block housing allows for minor angular misalignments caused by girder deflection under full rated load. This self-aligning capability protects the internal rolling elements from edge loading and premature fatigue failure. Precision-ground sealing systems, including labyrinth and multi-lip contact seals, protect the internal lubrication cavity from ambient particulate contamination in harsh industrial environments such as steel mills, foundries, and heavy fabrication workshops.
When evaluating the mechanical performance of long travel drive systems, engineers rely on several core technical metrics:
Wheel Diameter Range: Standardized light and medium blocks typically span 112 mm to 160 mm, whereas heavy-industrial configurations range from 200 mm up to 630 mm.
Maximum Load Capacity: Wheel load capabilities scale from 35 kN on compact units to over 650 kN on high-capacity mill-duty assemblies.
Metallurgical Specifications: Premium vacuum-degassed forged alloy steels (such as 42CrMo) with induction-hardened tread zones (HRC 52–58) prevent early spalling.
Bearing Mechanics: Heavy-duty double-row tapered or sealed spherical roller bearings provide high radial load resistance while absorbing lateral rail thrust.
Travel Velocities: System travel speeds generally range between 40 m/min in standard workshops and over 120 m/min in high-throughput automated logistics halls.

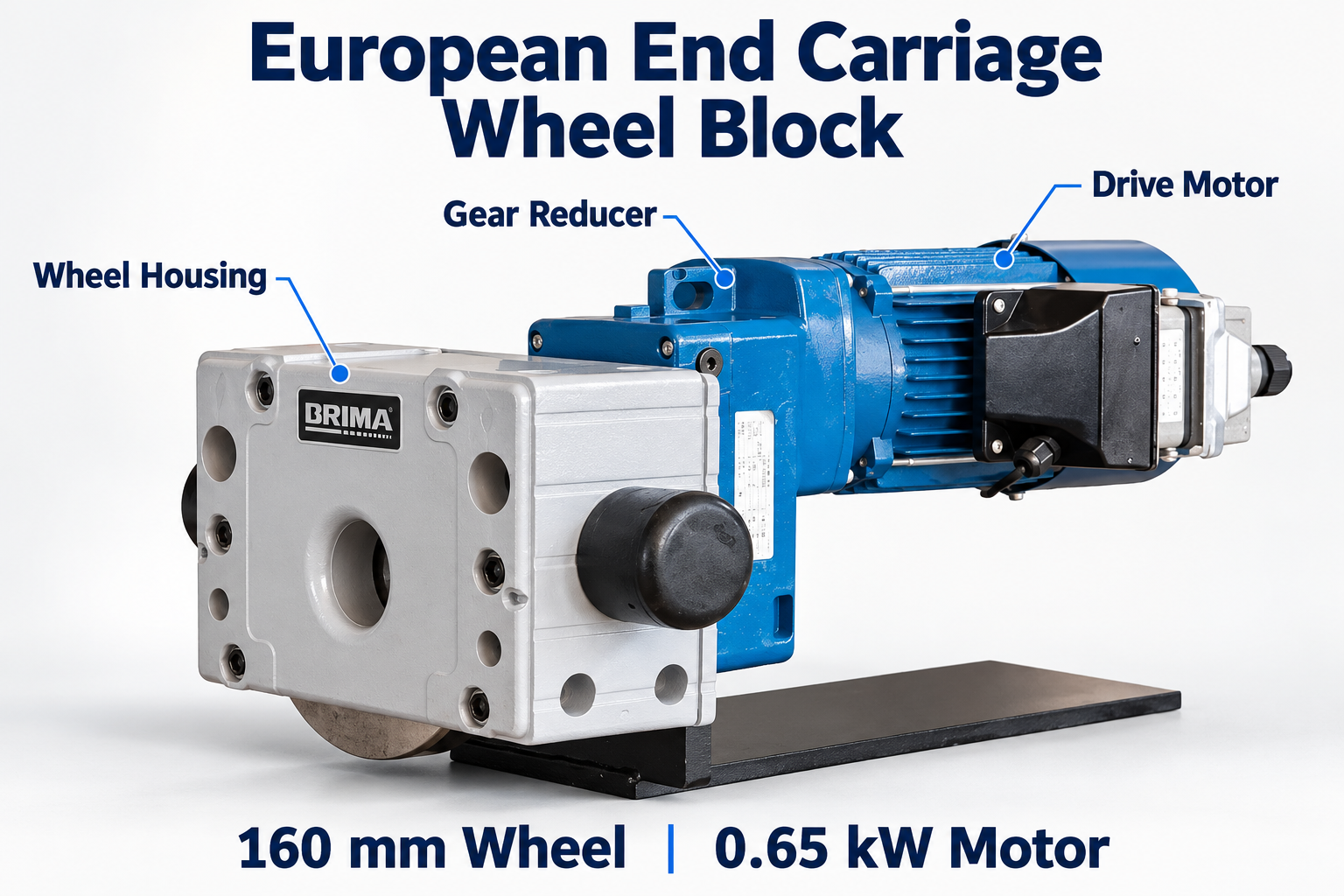

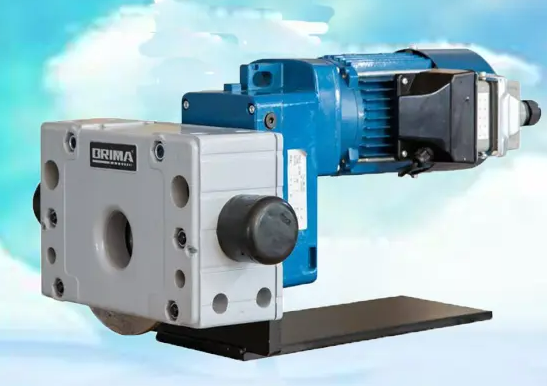

For facilities seeking compact, high-efficiency solutions in moderate-duty applications, utilizing a specialized 160mm European End Carriage Wheel Block with 0.65kw Motor provides an integrated drive solution that optimizes spatial clearance while delivering reliable torque transmission and smooth acceleration profiles.
Why is the End Carriage Wheel Block designed with such stringent geometric tolerances? In practical shop floor operations, even microscopic misalignments between opposing bridge girders can create lateral scrubbing forces against the runway rails. When crane wheels bind against the rail sides, energy consumption spikes, wheel flanges wear down rapidly, and dynamic stress concentrations fatigue the main structural welds.
Actual industrial buyers and plant maintenance directors consistently emphasize three core priorities when selecting travel systems: reduction of unplanned downtime, minimization of wheel flange wear, and ease of installation. European engineering standards have heavily influenced global market preferences in this regard. European buyers and modern automated plants overwhelmingly favor modular End Carriage Wheel Block designs because they allow for rapid drop-in replacement without requiring complex field welding or precision line boring on-site.
Achieving synchronized long travel motion across large spans requires rigorous management of dynamic forces. When an overhead crane travels down the runway, inertial forces and asymmetric load positioning can cause the bridge to parallelogram, leading to wheel skew. Wheel skew occurs when the centerline of the wheel tread is not parallel to the longitudinal axis of the runway rail.
To counteract this, modern end carriage assemblies incorporate rigid box-section frames and precision-machined boring seats that maintain strict squareness tolerances relative to the main bridge girder. Furthermore, the wheel treads are often engineered with specific profile geometries. For instance, double-flanged wheels with generous side clearances accommodate minor thermal expansion of the runway span while preventing the wheel from climbing the rail head.
Advanced installations often deploy frequency inverter (VFD) controls coupled to dual-drive End Carriage Wheel Block units on each side of the crane bridge. Soft-start and soft-stop programming eliminates the sudden mechanical shock associated with direct-line-start motors, drastically reducing wheel slip and dynamic track loads during acceleration and deceleration phases.
The mechanical linkage between the drive motor and the End Carriage Wheel Block must accommodate slight deflections of the end truck frame under load without inducing binding or shaft fatigue. Hollow-shaft gear reducers mounted directly onto the wheel axle represent the state-of-the-art approach in contemporary crane engineering. This direct-mount configuration eliminates intermediate open gearing, long drive shafts, and pillow-block bearings that historically required tedious manual alignment.
For lighter-duty overhead cranes and workstations requiring agile positioning, adopting a BRS 112 mm light modular more efficient Crane Wheel Block Overhead Crane offers an exceptional balance of low dead weight, high mechanical efficiency, and compact space requirements, making it ideal for underhung and single-girder suspension setups.
When evaluating dynamic performance, modular end carriage wheel assemblies outperform traditional welded structures across key operational aspects:
Alignment Precision: Factory CNC-machined boring ensures mounting tolerances within plus or minus 0.05 mm, eliminating the thermal distortion inherent in field welding.
Vibration Damping: Optimized box-section mass distribution absorbs high-frequency impact vibrations during crossing points or rail joints.
Torque Transmission: Direct hollow-shaft splined connections remove long driveshafts, minimizing mechanical backlash and maintenance wear points.
Thermal Expansion: Floating bearing setups within the housing seamlessly accommodate longitudinal thermal growth across extended building spans.
Service Efficiency: Plug-and-play modular block cartridges allow rapid replacement during planned maintenance windows without unmounting the bridge.
Historically, crane builders fabricated end trucks by welding heavy steel plates into box sections, manually machining bearing housings into the structure, and bolting or pinning the wheels in place. While this method produced robust structures, it suffered from severe limitations in manufacturing consistency and field serviceability. Any distortion introduced during the welding process directly compromised wheel alignment, leading to accelerated wear and high operational noise.
The advent of modular End Carriage Wheel Block technology revolutionized the industry. In a modular system, the entire wheel assembly—housing, bearings, axle, and wheel—is manufactured as a self-contained, pre-aligned subassembly on high-precision CNC machinery. The structural end truck frame then serves simply as a docking interface for these standardized blocks.
This architectural shift offers profound advantages for both original equipment manufacturers and end-users. Manufacturing tolerances are controlled in a strict machine-shop environment rather than on the fabrication floor, ensuring absolute repeatability across production batches.
When analyzing the total cost of ownership (TCO) over a crane's operational lifespan, modular systems consistently outperform legacy designs:
Interchangeability and Rapid Replacement: Modular wheel blocks are manufactured to strict dimensional interchangeability standards. Replacing a worn wheel assembly requires simply unbolting the damaged block and dropping in a replacement unit without requiring custom machining or on-site realignment.
Optimized Weight-to-Strength Ratio: Advanced finite element analysis (FEA) optimization of housing geometries removes unnecessary dead weight, reducing static wheel loads on the supporting building runway structure.
Sealed Contamination Protection: Unlike open bearing setups found in older crane designs, modular blocks feature integrated labyrinth seals and lifetime-lubricated internal cavities that block out dust, moisture, and abrasive particulate matter.
Ensuring long-term operational continuity for heavy industrial cranes requires proactive maintenance routines that go beyond basic visual checks. An effective inspection protocol for an End Carriage Wheel Block system encompasses structural, mechanical, and electrical evaluations. Maintenance technicians must periodically inspect the wheel treads for pitting, flaking, or thermal cracking caused by excessive wheel slip or overloading.
Furthermore, runway rail alignment directly dictates the wear characteristics of the wheel assembly. If runway rails are out of span or elevation by more than allowable tolerances, lateral forces will accelerate flange thinning. Laser alignment tools should be deployed annually to verify rail straightness, span parallelism, and elevation levels across the entire runway length.
To prevent unplanned downtime, maintenance teams monitor specific wear indicators against concrete action criteria:
Tread Wear: A reduction in wheel tread diameter exceeding 5 percent of its original factory nominal size requires full wheel block replacement.
Flange Thinning: A flange thickness loss greater than 30 percent indicates severe runway misalignment and requires immediate rail inspection and block renewal.
Bearing Clearance: Radial play exceeding 0.15 mm in spherical or tapered roller bearings signifies internal race fatigue and requires bearing replacement.
Frame Alignment: Structural end truck diagonal variances exceeding 4 mm across the total bridge span necessitate re-squaring of primary connections.
Lubricant Health: Oil or grease showing thermal breakdown, metallic particle contamination, or moisture contamination must be thoroughly flushed and refilled.
From an advanced technical standpoint, why do certain crane installations experience premature wheel failure while others operate for decades with minimal intervention? The answer lies in the dynamic matching of wheel hardness to rail material hardness. If the crane wheel is significantly harder than the runway rail, the rail will wear out prematurely; conversely, a soft wheel will flatten and spall under heavy cyclic loads.
Selecting an End Carriage Wheel Block with a matched induction-hardened tread ensures a balanced wear couple between the wheel and the high-strength crane rail (such as DIN 536 A-series rails). Additionally, ensuring that the drive motors are equipped with smooth acceleration and braking ramps prevents the instantaneous high-torque spikes that tear micro-fractures into the wheel surface.
Selecting the correct End Carriage Wheel Block configuration requires a comprehensive evaluation of facility environmental conditions, duty cycles, lifting capacities, and spatial constraints. Engineers must evaluate the maximum wheel load ($P_{max}$), which is calculated by combining the dead weight of the bridge girder, end trucks, and hoist machinery with the rated safe working load (SWL) distributed across the wheel base.
For instance, in severe-duty steel mill applications classified under ISO M8 (FEM 5m to 4m), wheel loads are exceptionally high and operating cycles are continuous. In such environments, selecting heavy-duty forged steel wheel blocks with double-row tapered roller bearings and high-viscosity synthetic lubrication is mandatory to prevent thermal breakdown and fatigue spalling.
Conversely, for light manufacturing cleanrooms or maintenance workshops operating under ISO M3 or M5 classifications, compact modular wheel blocks with sealed spherical roller bearings provide an economical, maintenance-free solution that meets all safety factors without over-engineering the mechanical structure.
When finalizing the procurement specification for overhead crane travel systems, engineering teams should verify the following core parameters to ensure seamless integration and long-term durability:
Runway Rail Profile: Confirm that the wheel tread profile (cylindrical, conical, or flanged) perfectly matches the crown radius and width of the existing runway rail (e.g., A45, A55, A75 rails).
Duty Classification: Ensure the chosen End Carriage Wheel Block complies with the required FEM/ISO duty group corresponding to daily operating hours and load spectrums.
Drive Interface: Verify the hollow-shaft diameter, keyway dimensions, and torque arm mounting points to guarantee compatibility with the selected gear motor unit.
Environmental Conditions: Specify special surface treatments, anti-corrosion coatings, or high-temperature seals if the crane will operate in corrosive chemical plants, outdoor marine environments, or high-heat foundry settings.
Electrical Integration: Coordinate VFD braking parameters and travel limit switch configurations to ensure smooth deceleration and prevent mechanical over-travel at the runway ends.
By adhering to these rigorous engineering standards and selecting premium-grade modular components, industrial facilities can achieve maximum operational uptime, enhanced safety compliance, and superior long-term economic value from their overhead material handling infrastructure.
