Crane End Carriages: Essential Guide for Overhead Cranes

What you'll learn:

1. Structural Mechanics: How an End Carriage Wheel Block maintains bridge alignment and transfers dynamic loads.

2. Design Standards: Comparing compact modular configurations with traditional welded box structures.

3. Selection Criteria: Calculating wheel loads, spans, and motor torque for industrial overhead cranes.

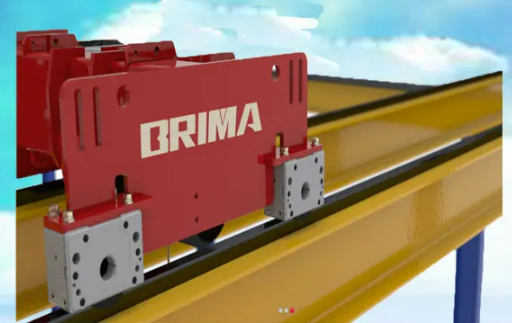

What Are Crane End Carriage?

As a senior technical specialist in material handling systems, I often clarify that crane end carriages are far more than wheel mounts; they are the core kinetic interface between the bridge girder and the runway. In heavy industrial settings, overall crane stability and alignment depend directly on the structural integrity of the carriage and its precision End Carriage Wheel Block. Our design priority is transferring static and dynamic forces smoothly to the runway without causing frame distortion or rail binding.

Mechanically, the carriage carries the vertical loads of the bridge, trolley, and payload, while resisting horizontal forces from acceleration, braking, and wind. The integrated End Carriage Wheel Block determines how effectively motor torque translates into smooth linear motion. Modern European design combines torsional rigidity with precise flexibility using heavy-duty hollow steel profiles, preventing structural twisting even under asymmetrical loads or minor rail imperfections.

Flawless synchronization between the dual drive motors on opposing end carriages is vital to prevent skewing and rail flange wear. Deploying modular End Carriage Wheel Block assemblies with self-centering roller bearings eliminates tracking misalignment during installation. This engineering approach minimizes maintenance overhead and ensures compliance with international safety standards.

Structural Integration and Load Transfer Mechanics

The bridge girder connects to the end carriage via precision bolted flanges or full-penetration welding engineered to endure long-term fatigue stress.

1. Girder Interface: Heavy-duty connection plates and grade 10.9 fasteners prevent joint slip under rated loads.

2. Load Distribution: Internal stiffeners distribute concentrated wheel reaction forces across the box section.

3. Buffer Mounts: Energy-absorbing polyurethane bumpers cushion end-of-travel kinetic impacts.

Maintenance Note: Quarterly inspections must verify fastener torques and weld integrity across every End Carriage Wheel Block assembly. Hairline cracking in paint around stress nodes indicates structural fatigue or rail misalignment.

Key Features of End Carriage

Evaluating modern end carriages requires examining their metallurgical quality, machining tolerances, and drive integration. European engineering standards have popularized compact, modular End Carriage Wheel Block units offering higher power density than bulky legacy designs. For procurement engineers, these features translate directly to higher reliability and reduced lifecycle costs.

Spheroidal graphite cast iron housings provide exceptional shock absorption against impact loads during rapid material handling. For example, systems like the European End Carriage Wheel Block with 0.65kw Motor combine compact wheel geometries with optimized gear motors to minimize dead weight and maximize hook approach dimensions, maximizing usable floor space.

Modern drive trains pair multi-stage helical gear reducers with inverter-controlled motors, ensuring stepless acceleration that prevents load sway. For lighter capacities, solutions such as the European Crane Wheel Block Overhead Crane deliver superior energy efficiency and quick component swapping without specialized rigging tools.

Metallurgical Superiority and Precision Tolerances

Forged steel wheels undergo controlled surface induction hardening to resist continuous tread wear while retaining a tough, fracture-resistant core.

1. Wheel Tread Hardness: Maintained at HB300–HB380 to minimize wear on high-strength runway rails.

2. Bearing Configuration: Sealed double-row spherical roller bearings handle heavy radial and thrust loads.

3. Anti-Derailment Guards: Integrated rail sweeps clear debris and prevent derailments.

Working Principle: Hollow-shaft gear motors mount directly onto the driven wheel axle without external couplings, eliminating mechanical losses and ensuring 100 percent synchronized torque transmission across the End Carriage Wheel Block.

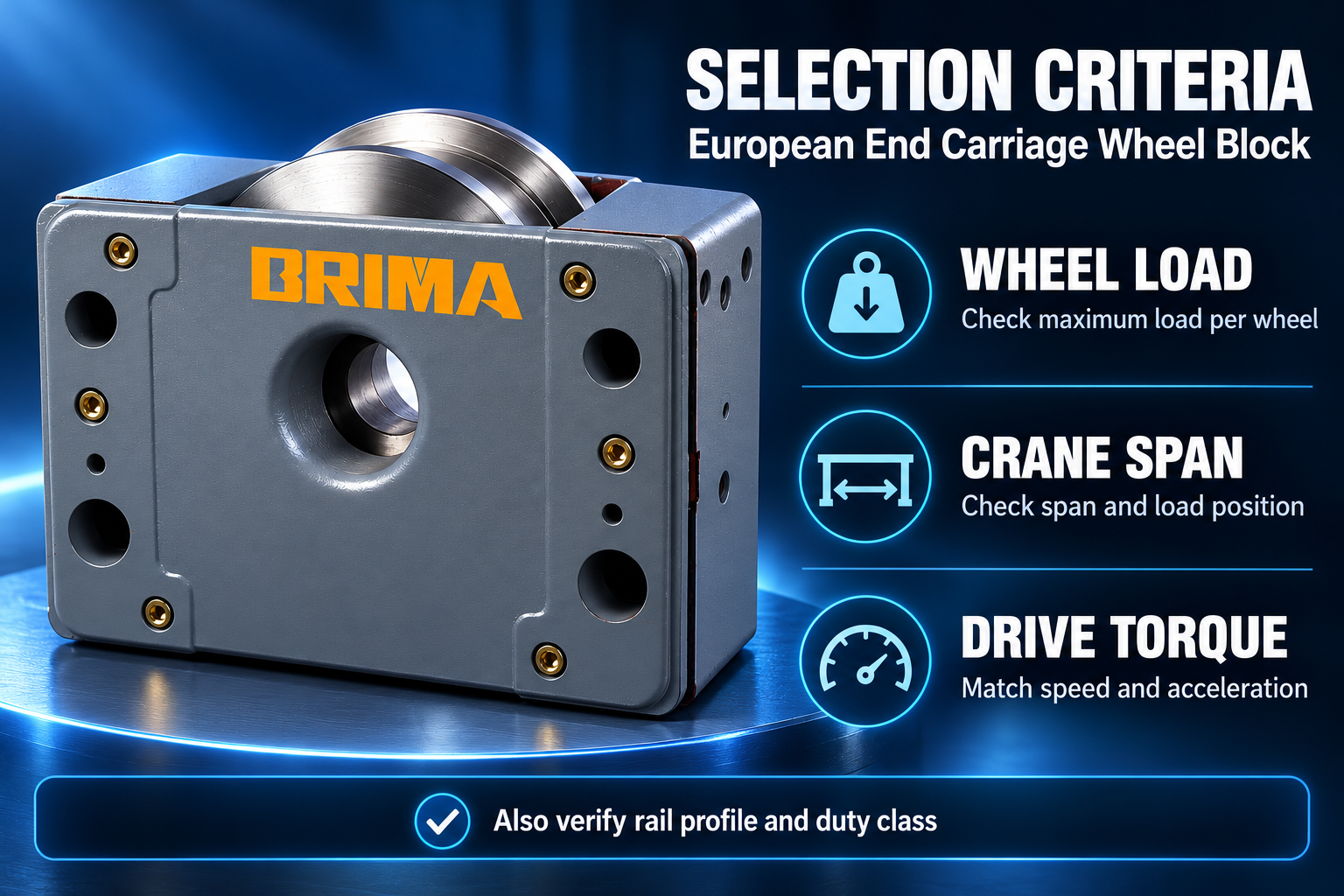

How to Choose the Right End Carriage

Selecting the ideal end carriage requires evaluating maximum wheel loads, span length, runway rail profiles, and operating speeds. Mismatching carriage specifications to actual duty cycles leads to premature bearing failure, accelerated rail wear, and costly downtime.

First, calculate maximum static and dynamic wheel loads ($P_{max}$) by combining bridge weight, hoist weight, and rated load alongside dynamic shock factors. Selecting the correct wheel diameter reduces contact stress on the rail crown; for instance, high-duty manufacturing plants require larger wheel diameters (160mm+) to distribute heavy contact pressures.

Environmental conditions dictate protective coatings, anti-condensation heaters, and specialized bearing seals. When planning automated facilities, ensure the end carriage frame includes provisions for positioning sensors and collision avoidance hardware.

Technical Evaluation Framework for Procurement

Evaluating potential suppliers against a standardized engineering framework ensures long-term operational performance.

1. Duty Classification: Match the FEM/ISO group (e.g., A5 to A7) to expected daily operating hours and load spectrums.

2. Rail Compatibility: Ensure wheel tread profiles match existing rail crown dimensions (e.g., QU70, A50).

3. Safety Features: Verify emergency limit switches, mechanical drop stops, and failure-safe electromagnetic brakes.

Operational Tip: Dual-motor drives on wide-span cranes must use master-follower VFD synchronization to ensure equal speed ramp-up, protecting the End Carriage Wheel Block assemblies from excessive lateral wear.
